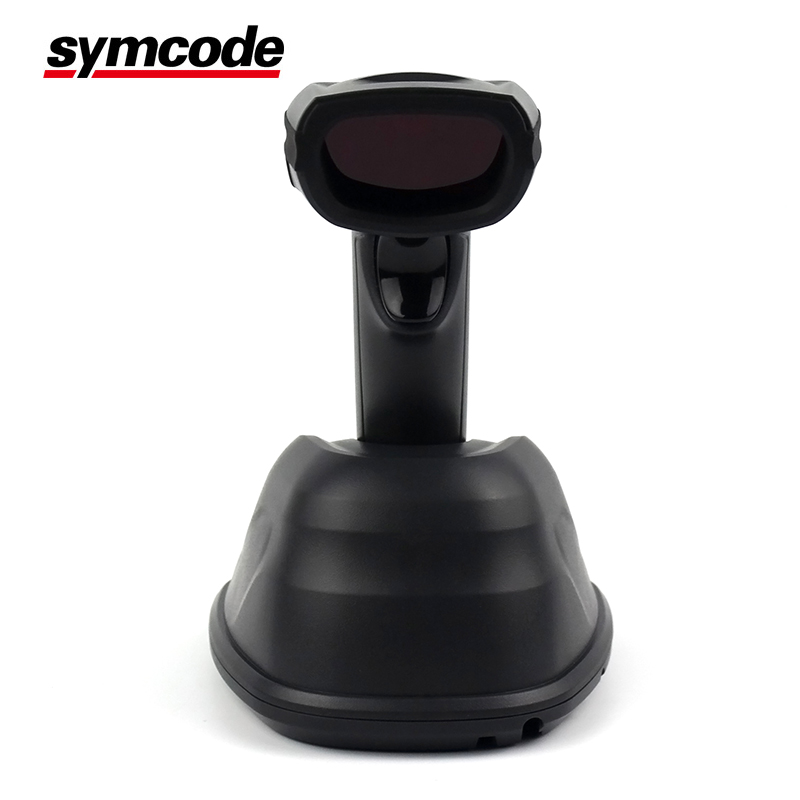

Symcode 433MHZ Laser Barcode Reader Charger
Wireless Transmitting Distance 50 - 300 meters
Introduction:
1. Symcode new design four pairing mode: one to one, one plus
storage, one to more, more-to-more, support one-click pairing, meet
your multi application scenes.Compatible with Windows/Mac OS/Linux.
2. 3 kinds of data upload mode:Instant transfer mode.auto storing
mode(default) and Manual transfer mode.16Mb internal memory
supports up to 55,000 barcodes in inventory mode when not
connected, you can upload the data to your device anytime when you
need.280times/second scanning speed.
Main Features:
● With simple installation and wireless function, ideal for
supermarket, shop, etc.
● Scientific internal structure design enhances anti-knock
function, which is unmatched by the common wireless barcode scanner
in the market
● Super transmission distance, 500m effective distance ( 50 - 200m
indoor distance)
● Super memory function, can store 10,000 - 300,000 barcodes
● The easy setting procedure can make sure the client use quickly,
avoiding the complex setting
● Powerful paring function: Support 3 kinds of work modes ( one to
one, one to many, many to one ). One receiver can receive message
from 255 pieces of scanner at the same time. In one to one mode, it
can support 4080 pieces of scanner work at the same time
● Uploading the data intelligently, it can upload the breakpoints
continuously
● Reading / not-reading is indicated by LED light and buzzer
● Low power consumption, save the power and increase service life
| Type | 433Mhz wireless barcode scanner |
| Input Voltage | 5V DC, ±0.25V |
| DC Current | 25mA(operating); 95mA(Max peak); 250mA(charging) |
| Light Source | 650nm visible Laser diode (1D) |
| Laser Safety Level | China GB Class II, EN60825-1 |
| Decoding speed | 150 times/second |
| AngleTolerance | Skew ±60°; Pitch ±65°; Roll ±42° |
| Resolution | 4mil |
| Wireless Contact Radius Limit | 300 meters |
| 1D Code Types | UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full
ASCII), Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5,Codabar,
Code 128,Code 93,Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128,
China Post Code,GS1 Data Bar (formerly RSS) etc. |
| Alert Mode | Indicator and Buzzer |
| Interfaces | USB, RS232, PS2 |
| Trigger mode | Manual, Consecutive Scanning |
| Mode setting | Set by scanning functional barcodes or by cradle keys |
| Temperature | -18°C ~55°C (working); -40°C ~60°C (storage) |
| Humidity | 5%~90% (Non-condensing) |
| Shield Materials | ABS+PC |
| Shock proof | withstand multiple drops from 1.8m to concrete surface |
| Dust & Water proof | IP52 |
| Battery Performance | it can work 45hrs consecutively or can last 1 week at normal
working time after a 4hrs power charge (full) |
| Weight | 129g
|
Reliability is also an amazing benefit of this two D scanning
platform. There’s just one moving component in a 2D scanner, the
trigger switch. These are only some of the benefits of utilizing
Two D scanning platform. There are more advantages which is not
included here.
If you are in the market for two dimensional barcode scanner, then
the RedTech D630 two dimensional barcode scanner is indeed the best
and most reliable barcode scanner available at this point in time.
