    Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-2060S
    Certification : CE FCC ROHS IP54
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

    Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate

    Superior Performance Wiegand Format Fast Decoding 1D

    Barcode Scanner Module for wiegand turnstiles gate


    Advantages:

    • OEM develop special and small size
    • 3.3-5V medical industry PC kiosk

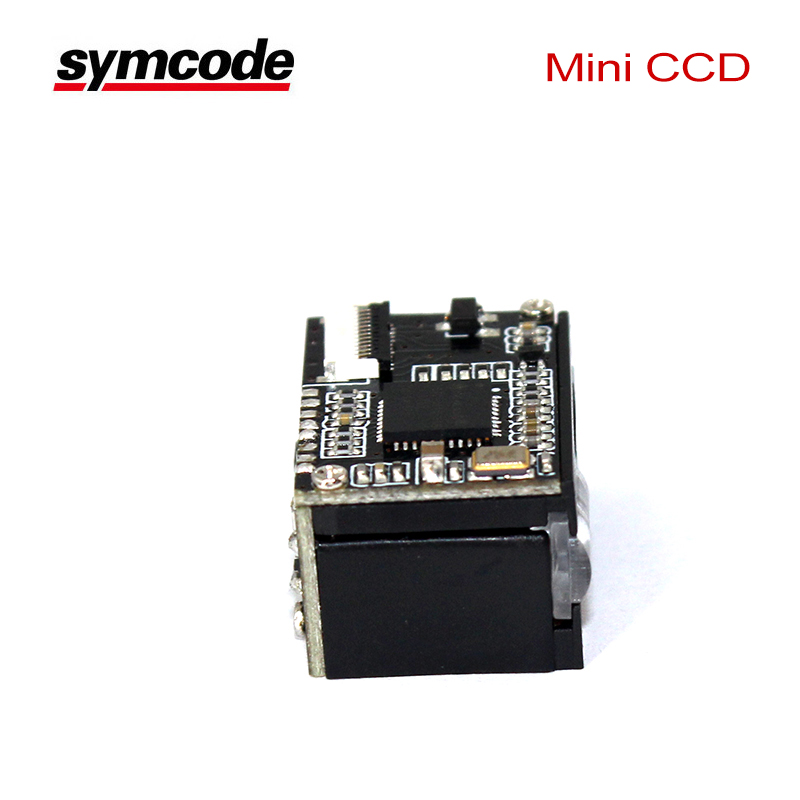

    • Outline of MJ-2060S is shown in figure1
    • Topside has electrical control components, including flexible cable socket, interface socket, through which MJ-2060S interfaces with external device
    • Front side has optical components such as image lens, through which MJ-2060S captures image
    • Aiming light, which sends rectangular, green light beam for aiming and illumination lights, which illuminates barcode
    • Bracket covers sides and bottom of engine
    • Two mounting holes on the bottom side are available for mounting engine to external device
    • Back side is CCD circuit for image capture
    light sourceVisible red light, wavelength 632nm
    Optical systemLinear CCD Sensor
    processorARM32-bit
    Resolution1500
    definition≥4mil/0.1mm(PCS90%,CODE 39)
    Read depth of field50mm~600mm
    Decoding speedUp to 300 times / sec
    Read modeManual reading, automatic reading, induction reading
    Read angleTest Conditions:CODE39,10mil/0.25mm,PCS90%
    Tilt Pitch:±60°
    Rotate: ±30°
    Skewed : ±60°
    Print contrast≥25%
    Ambient light intensity0-100000LUX
    Reading code systemUPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93, Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
    Size21.6mm*13*16.2

    FAQ


    Q: How about the shipping way?

    A: There are DHL,FEDEX,TNT,UPS,E-EMS(we also can ship goods by your shipping account or other agent you proivded)

    Q: How about the Warranty

    A: One year warranty. During warranty period, the damage caused by non-human factor, HSPOS will be responsible for the free repair.

    Overdue warranty period, HSPOS will continue to provide services with reasonable price to the customer
