Brand Name : | symcode |
Model Number : | MJ-2000 |
Certification : | CE / RoHS / FCC |
Payment Terms : | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability : | 50,000pcs per month |
Delivery Time : | Sample order:1-3 days / Bulk order:7-15days |

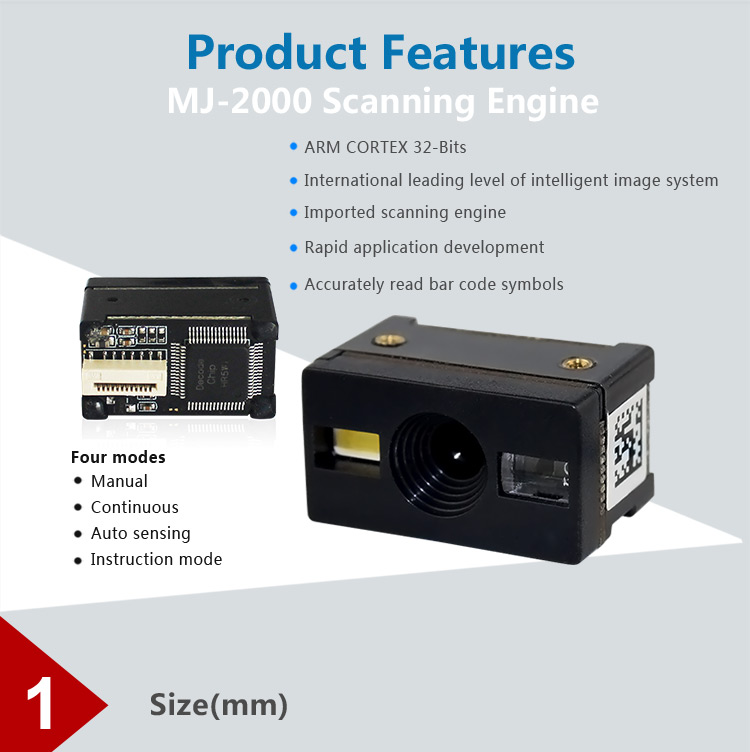

Symcode MJ-2000 2D Barcode Scanner Engine for Both 1D/2D
Barcode scanner OEM Scan Engines
Feature
1.Support 1D&2D barcode.And it working low misreading rate,can
read faster and more efficient.
2.wired or wireless capability:Have two working ways:USB connection
or bluetooth connection,give you difference choice to scan code.
3.excellent scann capability:easily read smaller 2D code that older
and faded.
4.Long transmit distance,the scanner can transmit 100 meters.
5.shockproof:Dropping from 2 meters high,it will working well as
usual.
Type | 2D image scanning engine |
Sensor Resolution | 648x 488 |
Barcode types | Codabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix |
Barcode accuracy | >/=4mil |
Focal diatance to front of engine | 40~300mm |
Ambient Light | 0~100000LUX |
Print Contrast | 30% |
Scan Angle | Pitch angle: 28° Skew tolerance:21.5° |
Max Power Comsumption | 1.4W |
Voltage | 3.3V ± 5% |
Max Current | 135mA |
Operation Current | 58mA |
Standby Current | 2mA |
Operation Temperature | (-20℃ to 60℃ |
Storage Temperature | (-40℃ to 80℃ |
Humidity | 5% to 95% |
Dimensions: | 21mm 11mm 13mm |
Weight | 7g |
![]() |
