    Symcode Mini 2D Scanner OEM Barcode Module For Bluetooth Barcode Scanner

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-1000
    Certification : CE FCC ROHS IP54
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

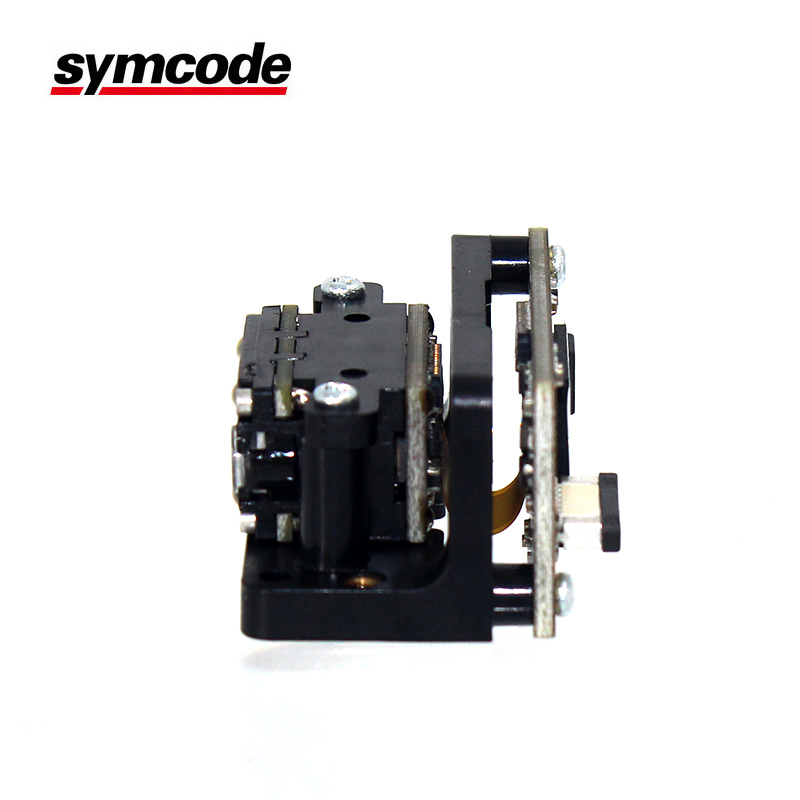

    Symcode Mini 2D Scanner OEM Barcode Module For Bluetooth Barcode Scanner

    Symcode Mini 2D scanner barcode

    OEM Module for Bluetooth barcode scanner MJ-1000


    Description

    Barcode reader/scanner module with CCD camera

    Scan rate: 100 scans/sec ±10%

    Reading distance: 500mm@20mil/0.5mm, PCS90%

    Working frequency: 8MHz


    The Barcode Reader/Scanner Module is a perfect choice for your OEM design. It brings the benefits of barcode scanning to all types of OEM devices. You will be able to use this cutting-edge scanning technology in projects such as kiosks, medical instruments, diagnostic equipment, lottery machines, vending machines to name but a few.


    TypeCMOS
    Resolution752x480
    Barcode capability2D:PDF417,QR Code,Data Matrix,Chinese sensible code,etc.
    1D:code128,EAN-13,EAN-8,Code39,etc
    Precision≥ 3mil
    Interface supportedRS-232 (3.3V TTL-level)
    Scan of depth40mm~300mm
    print contrast≥ 30%
    Roll360°@ 0°Pitch and 0°Skew
    Pitch60° @ 0°Roll and 0°Pitch
    Skew60°@ 0°Roll and 0°Skew
    Ambient light0 - 100,000 LUX
    Dimensions38.25 L mm × 19.43 mm H × 27.80 W mm
    Maximum Power consumption1.4W
    Voltage3 ~ 5V
    CurrentWorking 350 mA
    Standby 50 mA
    Weight25g
    Working temperature-5℃~ +45℃
    Storage temperature-40℃~+60℃
    Working humidity5% - 95%(Non-condensing)
