    Integrated Barcode Scan Engine USB TTL Wiegand Interface Automatic Reading

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-2060S
    Certification : CE FCC ROHS IP54
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

    Integrated Barcode Scan Engine USB TTL Wiegand Interface Automatic Reading

    USB TTL wiegand interface OEM 1D CCD integrated

    scanner barcode scan engine module

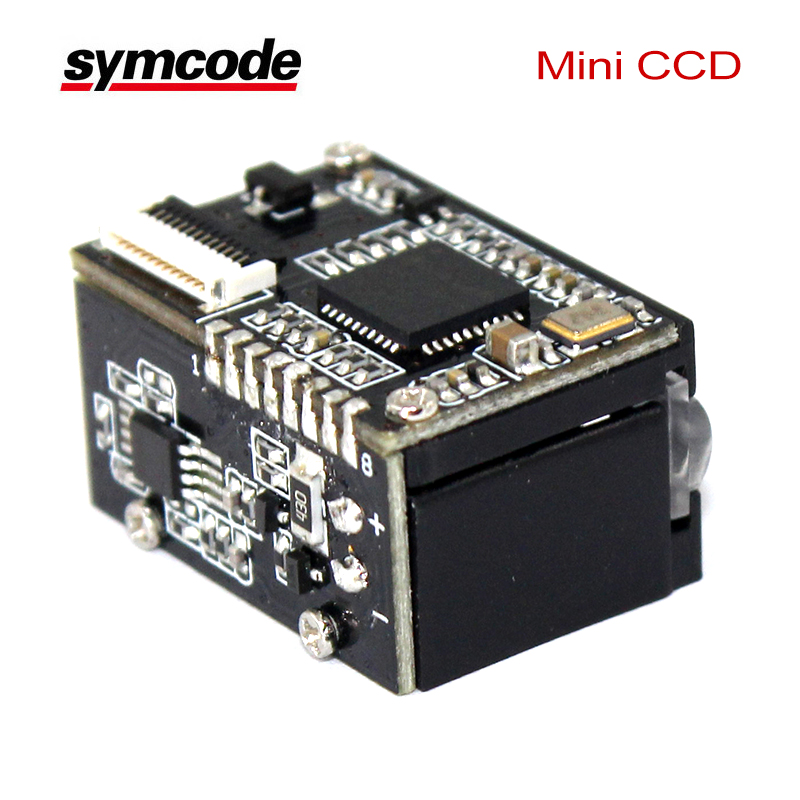

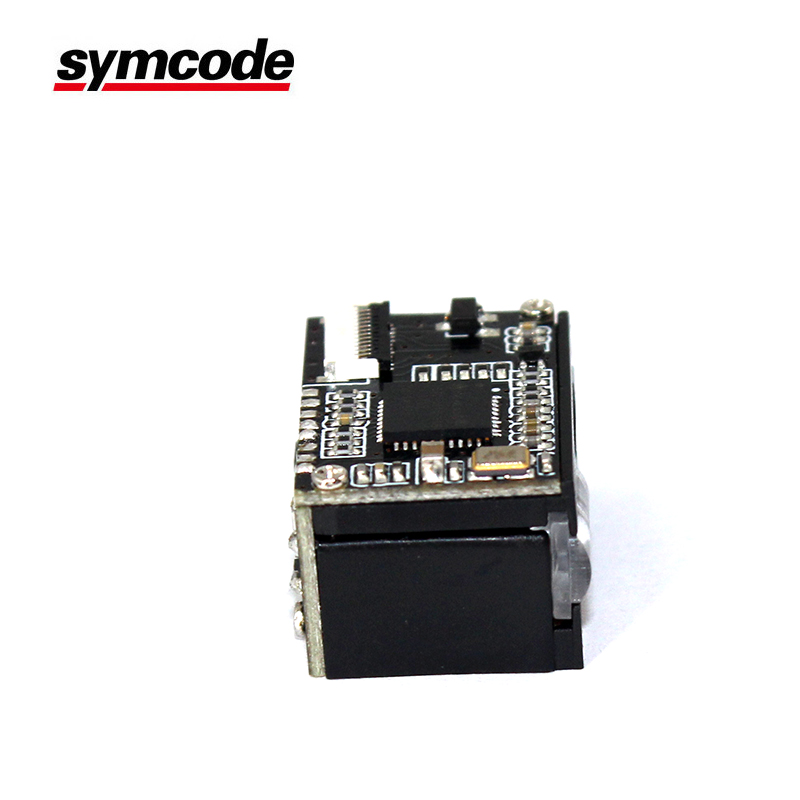

    MJ-2060S is a miniature embedded 1D CCD bar code reading engine using intelligent image recognition system. You can easily read codes off the paper, goods, screens and other media. It can be easily embedded in a variety of OEM products (including handheld, portable, fixed and bar code collector) and so on.

    Main Feature

    1. Small size,able to be easily embedded in other equipment applications
    2. Easily read all main 1D codes in the market
    3. High-performance processor enable fast decode capability
    4. Support a variety of interfaces: USB, TTL-RS232,Wiegand interface

    Application

    Bar code scanners, wireless collectors, smart home lockers, self-service vending machines, self-service terminals, queuing equipment, lottery machines, mobile coupons tickets, mobile payment bar code scanning.


    light sourceVisible red light, wavelength 632nm
    Optical systemLinear CCD Sensor
    processorARM32-bit
    Resolution1500
    definition≥4mil/0.1mm(PCS90%,CODE 39)
    Read depth of field50mm~600mm
    Decoding speedUp to 300 times / sec
    Read modeManual reading, automatic reading, induction reading
    Read angleTest Conditions:CODE39,10mil/0.25mm,PCS90%
    Tilt Pitch:±60°
    Rotate: ±30°
    Skewed : ±60°
    Print contrast≥25%
    Ambient light intensity0-100000LUX
    Reading code systemUPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93, Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
    Size21.6mm*13*16.2
