    Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-2000
    Certification : CE FCC ROHS IP54
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

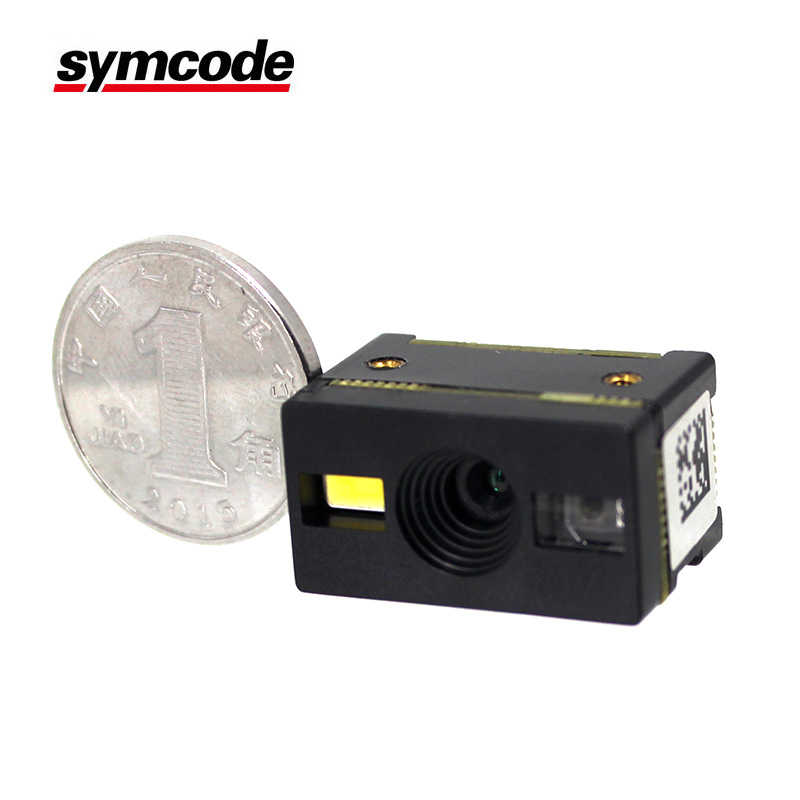

    Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module

    Auto sense CMOS 2D QR PDF Embedded

    Barcode Scanner module MJ-2000


    Functions


    1. Qr code scanner usb


    2. Medical plastic material,shell with disinfection can resist the harmful effects of stimulating chemical


    3. Dust-proof,IP54 waterproof standard,shockproof and resist fall


    4. Light weight&ergonomic design:


    5. With auto-sensing Handle


    6. Put the scanner on the special handle, then auto-sensing will open


    • Lifetime Replacement Warranty: Our program enables you to get the product replaced for free, if anything wrong, we will even pay for shipping!
    • Super decoding ability with a decoding rate of 150 times per second, and a decode error rate of less than 1/8 million communication distance 300-500m
    • Full quakeproof design, withstands 2 m drops.
    • USB / RS 232 / PS 2 Keyboard interface
    • Choose between automatic or manual operation, easy to operate, service life button up to 5 million times
    • Operating Channel 433 MHz|SM , Intelligent AGC control, supports 20 countries keyboard language
    • Brand : Symcode

    Type2D image scanning module
    Sensor Resolution648x 488
    Barcode typesCodabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
    Barcode accuracy>/=4mil
    Focal diatance to front of engine40~300mm
    Ambient Light0~100000LUX
    Print Contrast30%
    Scan AnglePitch angle: 28°
    Skew tolerance:21.5°
    Max Power Comsumption1.4W
    Voltage3.3V ± 5%
    Max Current135mA
    Operation Current58mA
    Standby Current2mA
    Operation Temperature(-20℃ to 60℃
    Storage Temperature(-40℃ to 80℃
    Humidity5% to 95%
    Dimensions:21mm 11mm 13mm
    Weight7g

    FAQ

    1. Service purposes

    SYMCODE service hotline to provide you online technical advice, product selection recommendations, field service dispatch and customer feedback follow up with comprehensive technical services


    2. Common problem

    You can find what you want to know about, and a wide range of product application case in applications, allowing you to use handy Dvorak products

    Type2D image scanning module
    Sensor Resolution648x 488
    Barcode typesCodabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
    Barcode accuracy>/=4mil
    Focal diatance to front of engine40~300mm
    Ambient Light0~100000LUX
    Print Contrast30%
    Scan AnglePitch angle: 28°
    Skew tolerance:21.5°
    Max Power Comsumption1.4W
    Voltage3.3V ± 5%
    Max Current135mA
    Operation Current58mA
    Standby Current2mA
    Operation Temperature(-20℃ to 60℃
    Storage Temperature(-40℃ to 80℃
    Humidity5% to 95%
    Dimensions:21mm 11mm 13mm
    Weight7g
