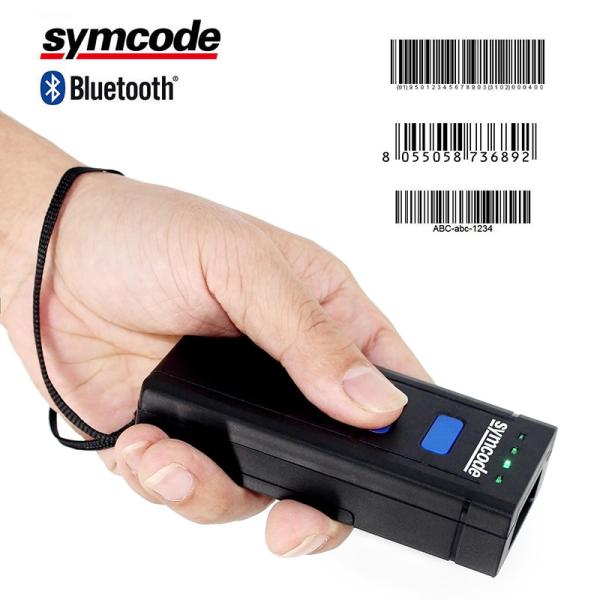

Laser wireless Bluetooth inventory / warehouse /
express barcode reader
Product Description:
1. Used in Android, IOS and Windows device.Supporting bluetooth
H-ID(Human Interface Device)/SPP mode
2. MJ-2877 has a very small volume with 30g wight, it's like a
Zippo lighter, and put it in your pocket easily.
3. The key life: 1,000,000 times; Solid lanyard hole; Silicone
Case.
Provide OEM / ODM services, include but not limited to: memory,
time function, scan engines...
Service:
1. Your inquiry will be replied within 24 hours.
2. Well-trained & experienced sales can reply your inquiries in
English.
3. OEM are highly welcomed.
4. Our staffs are ready to give our sincere service to you.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea,
car, or pick up by customers personally.
6. Sample Availability & Policy
After customers confirmed our specification, we are very glad to
provide samples for testing and qualification. All samples should
be paid before shippment, and the samples price is a little higher
than mass order. When the mass order placed, we can return you the
samples cost, or send you more products with the shippments.
| Type | 1D CCD/Laser bluetooth barcode scanner |
| Color Depth | 32-bit |
| Operating indicators | 2 LED (blue/green) |
| Operating keys | 1 key total, 1 scan & power key |
| Barcode scanner Optical | Sensor: 2500 pixels
Resolution: 4 mil
Print Contrast Ratio: 30%
Light Source: Red light LED 630±20nm
Scan Rate: 500 scans/sec
Depth of Field: 6-30cm
Supported Symbologies: Codabar /Code 11/Code 93/ MSI/ Code 128/
UCC/EAN-128/ Code 39/ EAN/UPC(EAN-8/ EAN-13/ UPC-A/ UPC-E/ ISBN)/
Code 2 of 5 (Industrial 25/ Interleaved 25/ Standard 25/2/5 Matrix) |
|
|
|
|
|
|
| Communication | Bluetooth module 4.0
Communication Mode: SPP, HID
Distance:10 meters (visual distance) |
|
|
| Power | Battery: 3.7V 1000mA Li-ion
Current Consumption: 30mA
Operating Current :100mA |
| Durability | Temperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing) |
| Physical | Dimensions (w x h x d): 100mm x 46mm x 21mm
Weight: 150g (include battery) |
Having the capability to read barcodes omni-directionally is a
benefit of utilizing this two-d barcode scanner. This utilizes an
image sensor to capture an image of the barcode.
That image is then run in software decoder software which resides
in the firmware of the scanners.
The decoder has the capability to locate the barcode based on every
barcode’s exceptional features, regardless of what the orientation
of the barcode is.
This also allows you to hold the scanner in similar position for
each barcode with the barcode being read. User fatigue and general
read times are largely reduced.
