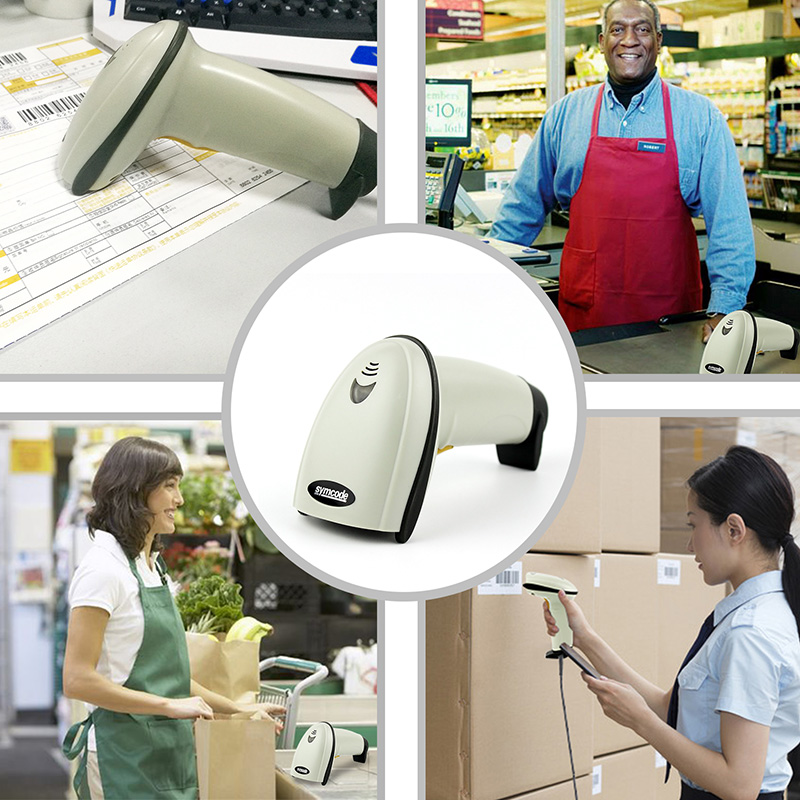

Factory supermarket 1D bar code laser reader
handheld wired USB barcode scanner
Features:
1. Decode Capability: Code11, Code39, Code93, Code32, Code128, Coda
Bar, UPC-A, UPC-E, EAN-8, EAN-13, JAN.EAN/UPC Add-on2/5
MSI/Plessey, Telepen and China Postal Code,Interleaved 2 of 5,
Industrial 2 of 5, Matrix 2 of 5, more for Request.
Optional stand for hands-free scanning. Automatic scanning whether it is used in hands or with the
optional hands free stand.
2. DURABLE CONSTRUCTION DESIGN: Manufactured with high quality
materials, the VT10H barcode reader offers ensured longevity and
durability without losing the sharpness of the laser beam. With a
robust and resistant housing plus a rubber bezel in the front, it
is capable of withstanding multiple bumps. This makes it suitable
for all kinds of harsh environments.
3. CUTTING EDGE LASER TECHNOLOGY: This handheld laser scanner is
equipped with a thin, sharp, class 1 laser aimer for accurate
barcode aiming. With the improved up to date decode algorithm,
besides the precise barcode capture from low contrast to on-screen
barcodes, VT10H delivers reliable and consistent performance
regardless the lighting conditions.
4. FAST & ACCURATE PERFORMANCE: Fabricated according to the
production line’s needs, this auto-adaptive high-speed scanning
tool with a highly efficient data transmission interface provides
the capability of reading 3Mil barcodes and mobile barcodes.
| Type | Handheld Laser Bar code Scanner |
| Light Source | 650-670nm(Visible Laser ) |
| Scan Rate | 100 scans/second |
| Reading preciseness | 0.10mm(4mil) |
| Interface | PS2 ,Rs232,USB and more |
| Reading Distance | 2.5-600mm(100%UPC/EAN) |
| Barcode types | EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5,
interleave 2 of 5.matrix 2 of 5, MSI, |
| scan scope | 10mm-250mm |
| Scanning angle | inclination angle 45˚,Elevation angle 60˚ |
| Bit error rate | 1/3million |
| Power voltage | 5V |
| Safety performance | CE & Rohs
Accord with national level 2laser safety standards |
| Dimension | 150mm*50mm*65mm |
| Weight | 129g |
Specification:
Color : Black
Dimension: about 16.6 x 9.5 x 6.8 cm
Power supply: 5VDC ± 5%
Operating current: 100 mA ( 40 mA Standby )
Rated reading distance: 2.5mm-600mm
Scanning width: 18 cm
Prompting mode: buzzer or LED indicator
Scanning mode: button, auto sensing, automatic continuous scanning
Button life: 10 million times
Laser life: 10,000 hours
Communication Interface : Keyboard USB
