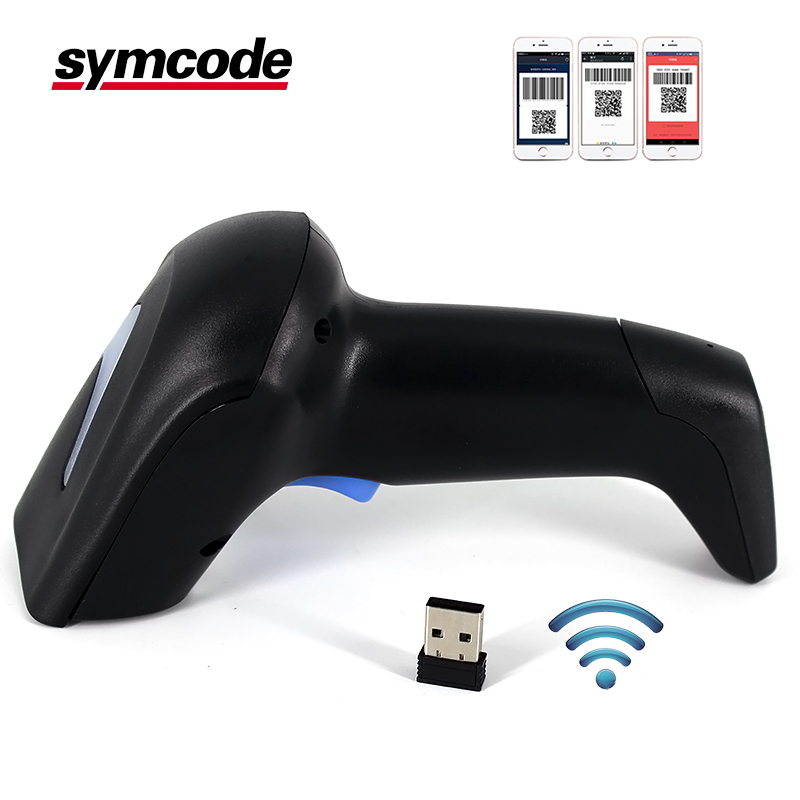

Upgraded Dual 2.4G Wireless 1D 2D Barcode Scanner
QR PDF417 Data Matrix UPC Rechargeable Bar Code
Features:
1. 【Dual 2.4G Wireless + USB Barcode Scanner】2.4G wireless
scanning, plug and play, no need to install any software. Bluetooth
Wireless scanning, password bypass direct connection, enable
bluetooth again will auto connect after being disconnected.
2. 【Support 1D Code, 2D Code Scanning】Quick Barcode Scanning Speed.
2D barcode: PDF417, Micro PDF417, Data Matrix(Square), Maxicode, QR
Code, Micro QR, Aztec, etc. 1D barcode: UPC, EAN, Code128, Code39,
Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.
3. 【High Compatibility】Windows, MAC OS by 2.4G wireless direct
connect, Android, IOS directly connected to mobile phones, tablet,
notebook, computer via bluetooth4.0.
4. 【Mass offline Storage】Built-in 2MB high-capacity memory, support
600,000 QR Code offline storage.
5. 【Ergonomic Design】Exquisite ergonomic design, weighs 130g, with
comfortable grip feel, and long time operating without fatigue.
| Physical | Description |
| Dimensions | 176cm*100cm*72cm |
| Weight | 300g |
| Power | 5V DC ±10%@450mA |
| Performance | |
| Light Source | Aimer:617nm LED White 6500K Illumination:625nm LEDs |
| Field of View: | 39°(H) x 25°(V) |
| Roll | 0-360° |
| Pith | ±65° or greater |
| Yaw | ±60° or greater |
| Print Contrast | 25% minimum reflective difference |
| Decode Capability | |
| 1D | UPC/EAN,UPC/EAN with supplementals,Bookland, EAN,ISSN, UCC Coupon Extend Code,Code 128, GS1-128, ISBT 128,Code 39,Code 39 Full ASCII,Trioptic Code 39,Code 32, Code 93,Code 11, Matrix 2 of 5,interleaved 2 of 5 ,Discrete 2 of 5,Codebar,MSI, Chinese2of5,GS1databarVariants,Korean 3 of 5,ISBT Concat |
| 2D | PDF417,MicroPDF417,CompositeCodes,TLC-39, Data Matrix,Maxicode ,QR code ,Micro QR,Aztec |
| Motion Tolerances | Up to 25in/63.5cm per second |
| Interfaces Supported | USB:HID Keyboard(default mode), COM Port Emulation Rs232:standard |
| Minimum Resolution: | SR:Code 39 4.8mil;UPC 60% 5mil,PDF417 5mil,Datamatrix 7.5mil |
| Regulatory | |
| Electrical Safety | UL60950-1 2nd ed,CSA C22.2 No.60950-1 2nd ed,EN60950-1/IEC60950-1
2nd ed |
| LED safety | IEC/EN60825-1:2001.IEC/EN62471:2006 |
| EMI/RFI: | FCC Part 15 class B,ICES-003 Class B,EN55022 Class B,EN55024 |
| WARRANTY | 2-YEARS |
| User Environment | |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Drop Spec | Withstands multiple 6ft. Drops to concrete |
| Ambient light Immunity | Immune to normal indoor lighting up to 1600Lux, Immune to sunlight up to 86,000Lux |
