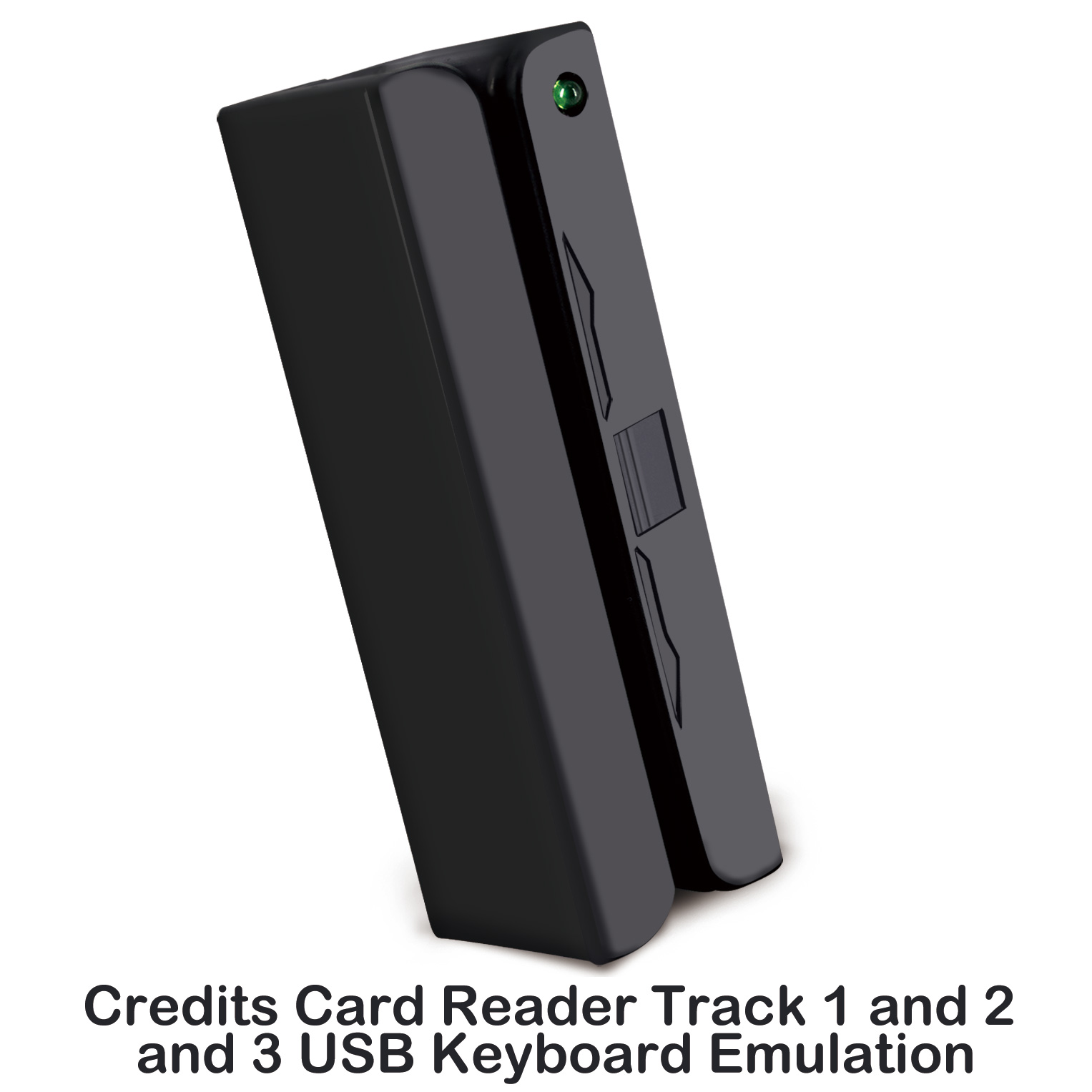

Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp

    Buy cheap Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp from wholesalers

    Buy cheap Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp from wholesalers
    • Buy cheap Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp from wholesalers
    • Buy cheap Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp from wholesalers

    Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MSR-003
    Certification : CE / RoHS / FCC
    Payment Terms : T/T, Western Union, D/P, D/A, L/C
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

    Single Direction Magnetic Card Reader Built - In Buzzer With Two LED Lamp

    shenzhen high quality electroniccs 3 tracks usb

    magnetic card reader/writer msr


    Features

    • Interface: USB OTG
    • Capacitive: JPOS & OPOS
    • Convenient: boot self-checking, USB output without external power supply,

      simple operation, plug and play

    • Read card:manual,three tracks , double direction

    • Instructions function: built-in buzzer, with two LED lamp

      (green LED light indicator card read success)

    • Output function: programmable choose USB HID, keyboard simulation output,

      customizable USB OTG or RS_232 serial output

      RS_232 output can select baud rate, take the electricity, from the mouth of a

      keyboard without external power supply

    • Safe &reliable: support 3 DES, DUKPT encryption

    • System: Windows XP, Windows visa, Windows, Linux, android, ios 5, and so on

    It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications.


    In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR-003 reader/writer.


    The MSR-003 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.

    Power Reference
    Power requirements+24VDC +/- 5%
    ConsumptionTypical 350mA Max. 600mA plus for each writing track
    Power supplyExternal switching power 24V/2.5A
    InterfaceSerial interface or USB
    Ripple50mVp-p or less
    Dielectric strength500 VDC for 1 minute
    Performance
    Read cardTrack1Track2Track3
    Bit per density210 bpi75/210bpi210 bpi
    Coercive forceRead/write 300-4000 oe Mag.card
    Card thickness0.76-1.2mm
    Read speedSTD cardJitter +/-15%Amp. 60%
    5-55ips5-50ips5-50ips
    Write speed5-30ips
    Write jitterInterval < +/- 10%, Sub-interval < +/- 12%
    Error rateRead < 0.5%
    Write < 0.8%
    Head lifeMin. 1000K swipes for both read/write head
    Physics
    Body materialABS 94V-0
    WeightApprox. 1.4kg
    Dimension212L x 64W x 63H mm
    SwipeManual, single direction
    Environment
    Operation-10 to 55oC, 10 to 85% humidity
    Storage-30 to 70oC, 10 to 90% humidity
