Brand Name : | symcode |
Model Number : | VFD-220E |
Certification : | CE / RoHS / FCC |
Price : | |
Payment Terms : | T/T, Western Union, D/A, L/C, MoneyGram |
Supply Ability : | 50,000pcs per month |
Delivery Time : | Sample order:1-3 days / Bulk order:7-15days |

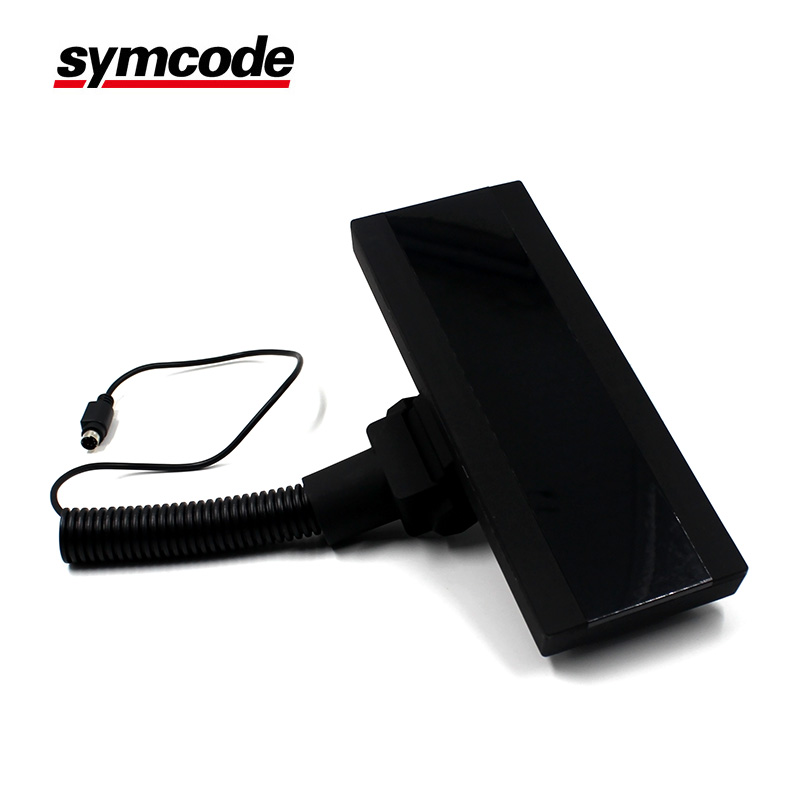

Electronic 2 Lines VFD Display Pole Adjustable Customer Display
for Supermarket POS System
The VFD-220E is a 2X20 line, 9.5mm character height display that comes with much functionality that simply is not found in other vendors’ offerings. Smart scrolling, user-definable characters, and a built-in real-time clock are all standard features of the unit’s firmware.
In addition, the VFD-220E comes with a USB interface, can emulate many popular command sets,
and has better visibility due to an optically matched lens and
wider character pitch. Best of all, this premium table top display
is also one of the most affordable on the market.
Two line by 20 character table top display with 9.5mm character
height
Proven reliability
Bright green vacuum fluorescent display
Better visibility due to optically matched lens and wider character
pitch
Automatic message scrolling, “smart scrolling,” vertical scrolling
and flashing messages
Easily programmable for custom messages
Interfaces: USB
User-definable characters
Available with emulation of many popular command sets, including
OPOS/JPOS
Communication | |
Interface: | Serial port (RS-232, powered by DC or powered by USB), or USB |
Baud rate: | 9600bps |
Data bit: | 8bit |
Stop bit: | 1bit |
Handshake signal | No |
Electrical | By the power of the host computer DC12 (big 4ps interface) |
Display: | VFD Bright blue-green fluorescent display . |
Display characters: | 2 line x 20 characters / line, 40 characters, 5 x 7 Dots |
Character size: | high 11mm x wide 7mm. |
MTBF: | 25,000 hours |
Dimensions | |
Panel dimensions: | 80(H) x 225(W)x37(D) mm |
Support dimensions: | Long support: 480mm (Contain base) Short support: 225mm (Contain base) Base dimensions: 185(L) x95(w) x25(H) mm |
Pitching move angle: | 45°, Can provide comfortable, and adjust the visual Angle. |
Weight: | 1.2Kg (gross) |
Environment | |
Operating Temp: | -20~70 A18 |
Storage Temp; | -40~80 A19 |
Operating Humidity: | 10~85% |
Storage Humidity: | 10~90% |
![]() |
