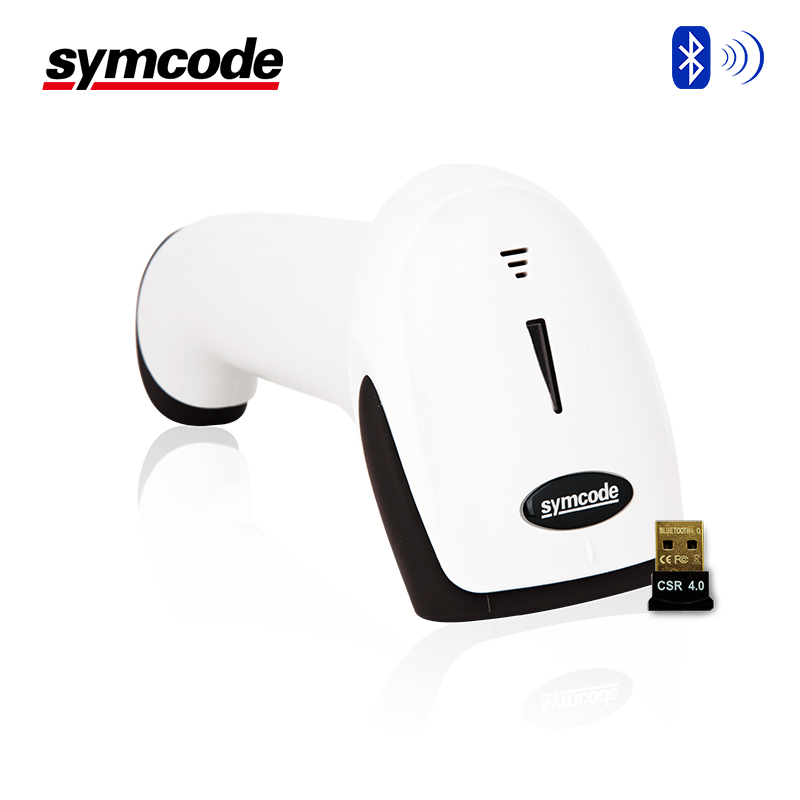

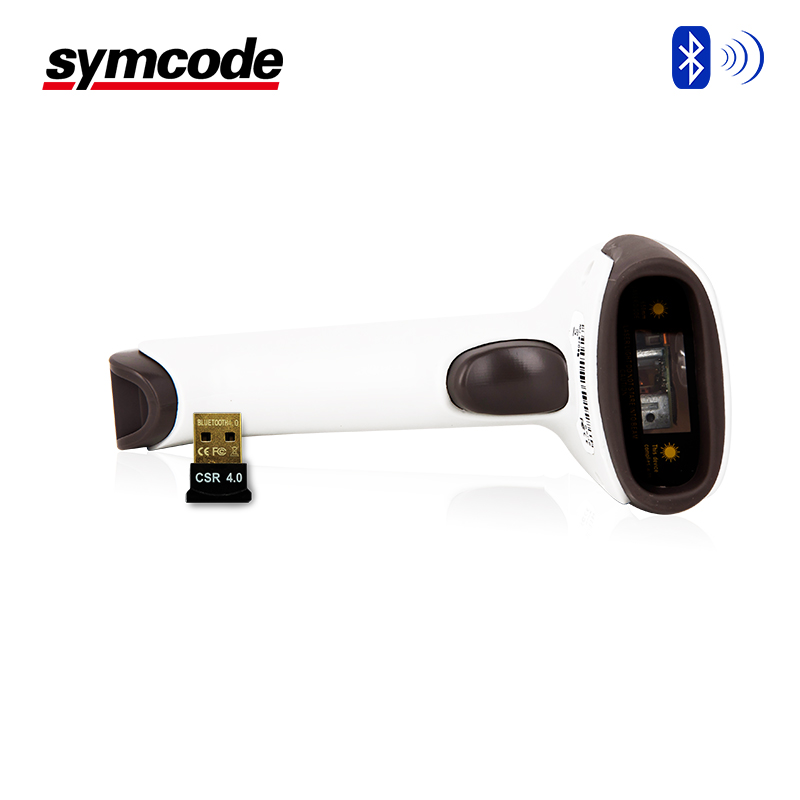

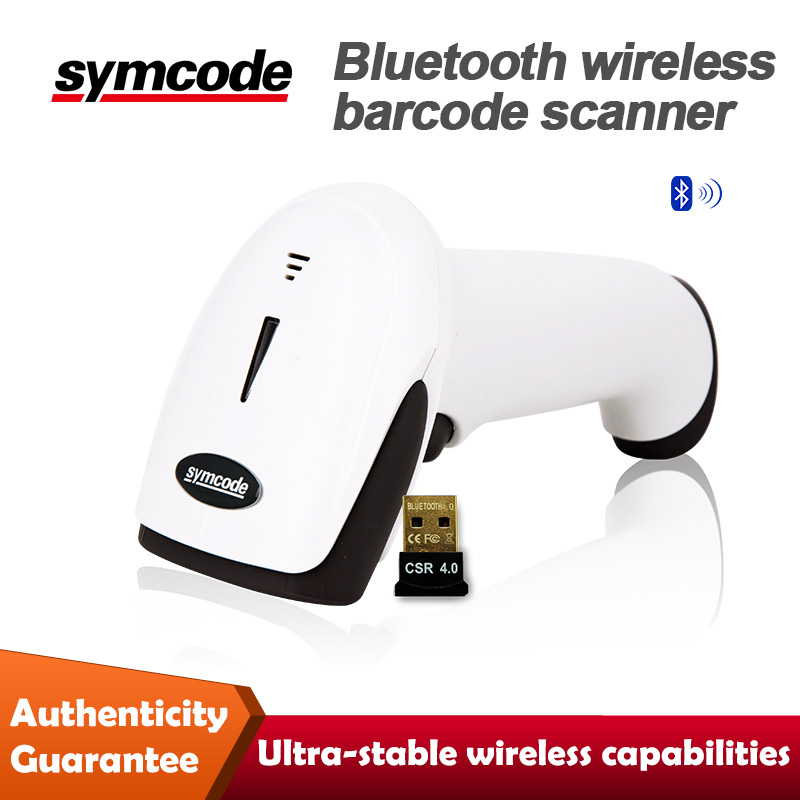

Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B

    Buy cheap Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B from wholesalers

    Buy cheap Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B from wholesalers
    • Buy cheap Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B from wholesalers
    • Buy cheap Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B from wholesalers
    • Buy cheap Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B from wholesalers

    Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-6706B
    Certification : CE / RoHS / FCC
    Payment Terms : T/T, Western Union, D/P, D/A
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

    Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B

    Good Quality wireless MJ-6706B 2D Programmable

    Infrared scanner Barcode barcode


    Specifications:

    - Bluetooth: V4.0

    - Scanning speed: 200 per second

    - Scan mode: 2D

    - Scan rate: 5 in/s

    - Resolution: 4mil


    Brief

    MJ-6709B is industrial-grade bar code scanner. By enhancing the technology,with the best scanning light source Now MJ-6709B can read some bad-qualified ,damaged and dirty bar code .

    It is characterized by stable performance and durability.With industrial housing protection,even in noisy and industrial environment, high volume buzzer can meet the requirement on confirming each scanning.


    Specification
    MechanicalLength:57.8mm, Width: 42.3mm, Height:16.4mm
    Weight40g
    ElectricalPower: DC5V Typical: 75mA DC5V
    CPU32bit ARM CPU
    Data storage100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
    Working modeBluetooth mode, USB mode, offline mode and RS232 mode(optional)
    Artificial light immunity100,000 lux
    Scanner performance

    Sensor Type: CMOS

    Scanner Rate: 100 times

    Scanner Angle: ±50°,±65°,±35°(skew, pitch, Roll)

    Contrast: >20%

    Decode Speed: 100 times per second


    Barcode TypeUPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants
    Decoding depth & Max. resolution

    (1 mil = 0.0254 mm)

    4 mil: 42- 75 mm

    5 mil: 40-105 mm

    10 mil: 10-250 mm

    15 mil: 23-380 mm

    20 mil: 35-490 mm

    30 mil: 30-650 mm

    55 mil: 75-900 mm

    CommunicationClass 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
    OSIOS, Android, Windows, Mac
    Laser safetyIEC60825-1-2007, Class 1
    Temperature

    Operating: -10°C to 60°C (-4°F to 140°F);

    Storage: -40°C to 70°C (-40°F to 158°F)

    Humidity5% to 90% (non-condensing)

    Type2D Bluetooth image barcode scanner
    Resolution:752*480
    Precision:≥ 3 mil
    Depth of scan field:40mm~300mm
    Print contrast:≥ 30 %
    Roll / Pitch / Yaw:360°, ±60°, ±60°
    Ambient Light Immunity:0~100,000 LUX
    Decode capability:1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

    2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode
    Bluetooth moduleBluetooth module 4.0
    Communication distance20 meters(visual)
    Battery3.7V 1000mA
    Momery512KB
    Drop Specifications:1.8m drops to concrete
    Dimensions:L 19.4cm*W 7.0cm*H 8.9cm
    Weight:

    200g
