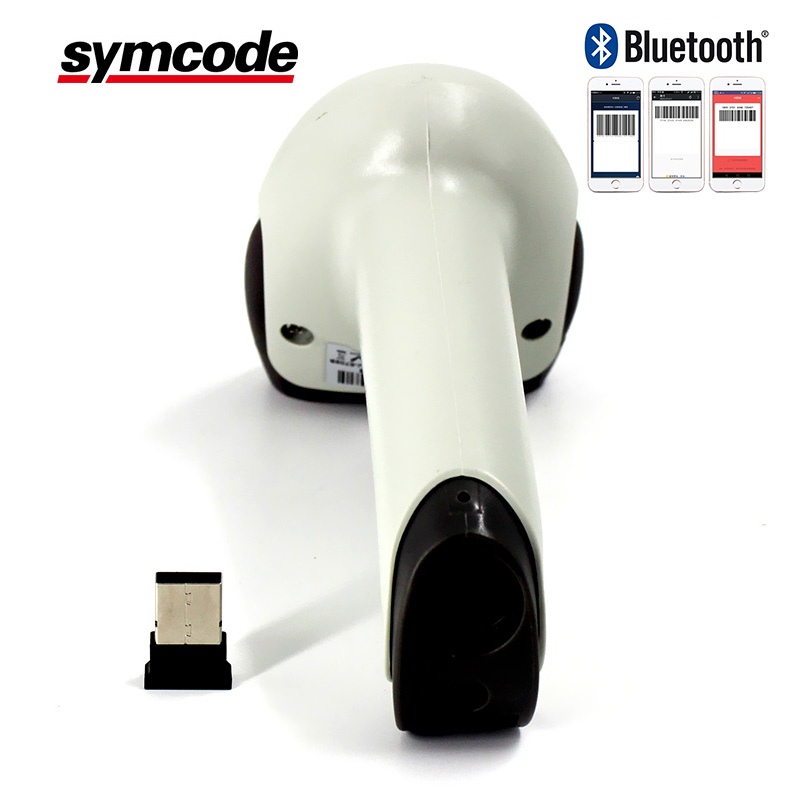

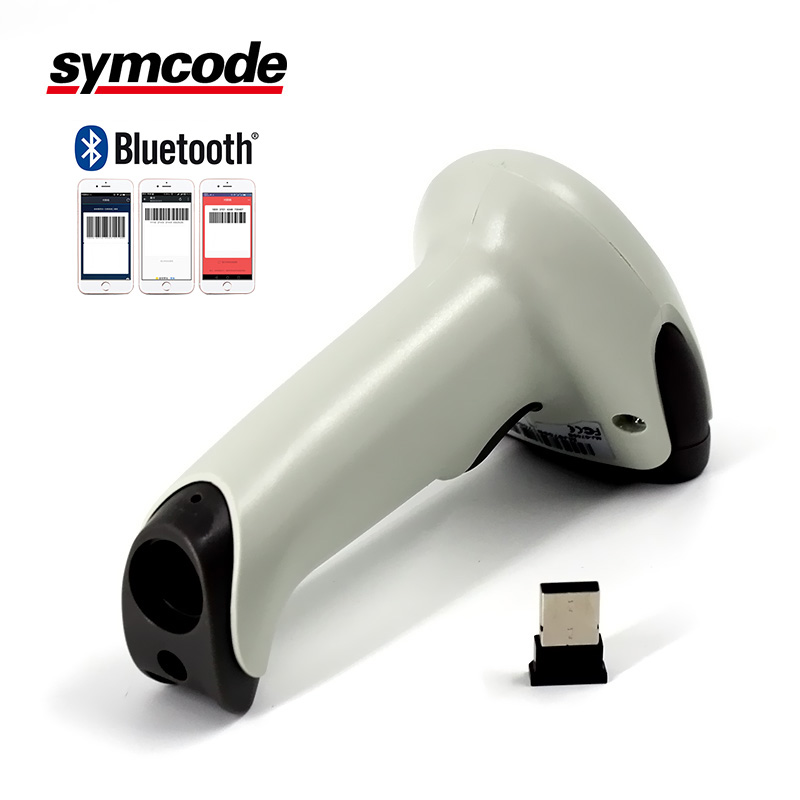

Symcode New Design MJ-6709CB 1D CCD Barcode Scanner
Bluetooth Bar Code Reader
Brief Introduction:
1. Wireless & Handheld, Convenient and Portable to use. Compact,
light-weight, durable & hight quality
2. Plug and play, no need to install any software or app, easy to
use
3. Wireless operation mode, flexible working solution for
inventories without any disturbing cable connection.
4. Ultra-long battery life, Integrated 1800mAh Li-Ion battery
5. Offline storage capacity more then 2600 code
6. Built-in 1800mAh Li-on rechargable battery, low power
consumption, can do nearly 48 hours continuous work
7. ABS+PC Material: Durable & Pratical,anti-knock and quakeproof
NOTE:
We appreciate your interest and trust in our company.
We have a very strict quality control system and extremely low
defect rate.
We value our customer service as the most important product of our
company.
Therefore, we offer a 7 days money back guarantee for non-human
breaking and one year limited warranty on all of our products.
| Technical Parameters |
| Input voltage | DC 5V+5% |
| Power | 108mw (operating mode); 20mw (standby mode);150mw(maximum peak) |
| Power supply | Built-in lithium battery |
| Current | 50ma (operating mode);10ma (standby mode);100ma (maximum peak) |
| Light source | Visible laser 650nm |
| Static protection | 15kv |
| Depth of scanning field | 3-9cm(0.1mm bar width);3.5-100cm(0.3mm bar width) |
| Scanning width | 5mm-30cm |
| Baud rate | RS232baud rate: 2400-38400 |
| Error rate | 120times/sec |
| Bar width | Minimum 0.1mm(4mils) |
| Decode capacity | UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar,
Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code
93, Code 11, MSI/PIESSEY,UK/PLESSEY,UCC/EAN128 code. |
| Prompting mode | LED beep sound : Two beeps if scan is successful ,three beeps if
not successful |
| System interfaces | USB 2.4Ghz adapter |
| Drive | Plug and USE, No Driver |
| Weight | Approx. 200g |
| Shell material | ABS+PVC+PC |
| Operating humidity | 0 to 95% |
| Electromagnetic interference | According to en8001, par1 standard |
| Dustproof waterproof | According to iec529, ip42 standard |
| Shock resistance | Pass 1.5m free fall test |
| Battery | Built-in lithium battery |
