High Quality Automatic Continuous Scanning
Laser Barcode Scanner Reader USB RS232
MJ-2808 can be applied to many industries and places with need of
1D bar code scanner,like retailing ,hospital ,producing ,post ,etc.
◆Support Output Editor: Patented decoding software, support a variety of special output
format editing and customization, such as adding character
identity, hidden output digits, display bar code system, etc.
◆Excellent Decoding Performance: Gold-plated optical technology ,32 bits master chip equipped with
proprietary software, smooth decoding barcodes which with
reflective, folds, blur, color code even in light environment
◆Barcodes Available: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128,
Codabar, industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI,
Chinese postal codes.
◆Kinds of Customized Available: For example: 1, Scanner work Controlled by Host command. 2,
Software and Scanner binding Available (Design for customized
scanner).
Description:
1. High quality super-fast patented mini pocket-sized portable
barcode scanner for small medium businesses that requires barcode
tracking.
2. Provides wireless and Bluetooth technology for flexibility
within a wide range of situations and workplace.

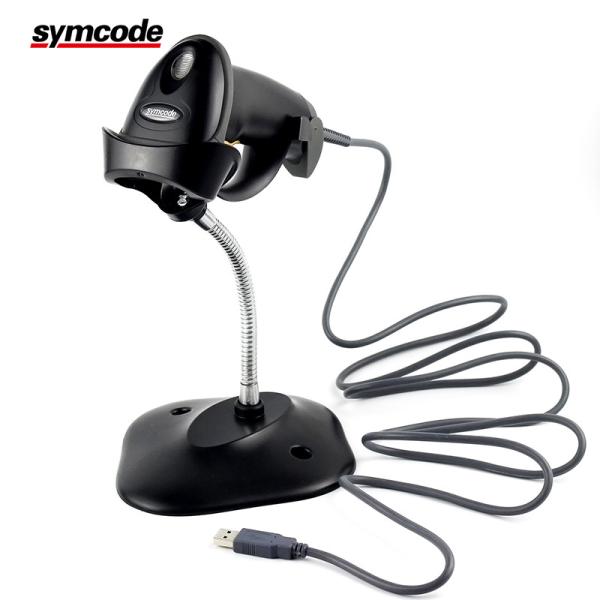

| Type | Auto sense bar code scanner with stand |
| Light Source | 650-670nm(Visible Laser ) |
| Scan Rate | 100 scans/second |
| Reading preciseness | 0.10mm(4mil) |
| Interface | PS2 ,Rs232,USB and more |
| Reading Distance | 2.5-600mm(100%UPC/EAN) |
| Barcode types | EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5,
interleave 2 of 5.matrix 2 of 5, MSI, |
| scan scope | 10mm-250mm |
| Scanning angle | inclination angle 45˚,
Elevation angle 60˚ |
| Bit error rate | 1/3million |
| Power voltage | 5V |
| Safety performance | CE & Rohs
Accord with national level 2laser safety standards |
| Dimension | 150mm*50mm*65mm |
| Weight | 129g
|
